HyComm Ferrule Collar M&S
DIN11853-3 - EHEDG
for Tube diam. 50,8x1,65mm
Mat. 1.4404 (316L) - Ra<0,8µm
Total length: 40,0mm
Outer flange diameter: 77,5mm

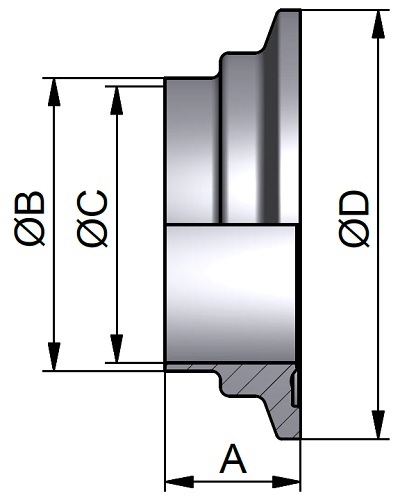

| DN | A | B | C | D | E | Article1.4404 / Ra<0,8µm |
| ½" | 22.0 | 12.7 | 9.4 | 34.0 | 101740123000 | |
| ¾" | 22.0 | 19.05 | 15.75 | 34.0 | 101740343000 | |
| 1" | 22.0 | 25.4 | 22.1 | 50.5 | 101741003000 | |
| 1½" | 24.0 | 38.1 | 34.8 | 64.0 | 101741123000 | |
| 2" | 24.5 | 50.8 | 47.5 | 77.5 | 101742003000 | |
| 2½" | 27.5 | 63.5 | 60.2 | 91.0 | 101742123000 | |
| 3" | 28.5 | 76.2 | 72.9 | 106.0 | 101743003000 | |
| 4" | 29.5 | 101.6 | 97.4 | 130.0 | 101744003000 |
HyComm Ferrule Collar M&S
DIN11853-3 - EHEDG
for Tube diam. 50,8x1,65mm
Mat. 1.4404 (316L) - Ra<0,8µm
Total length: 40,0mm
Outer flange diameter: 77,5mm
