Let op: Bij bestelling van lengtemateriaal worden de transportkosten achteraf berekend.

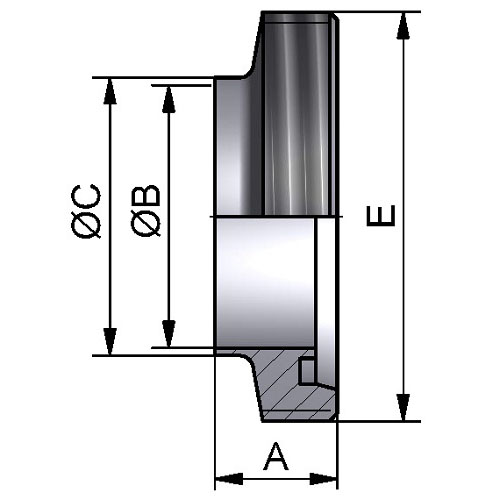

| DN | A | B | C | D | E | Artikel304 | Artikel316 |
| DN10 | 17.5 | 9.0 | 12.0 | Rd28x1/8" | 113040101 | 113040103 | |
| DN15 | 17.5 | 15.0 | 18.0 | Rd34x1/8" | 113040151 | 113040153 | |
| DN20 | 19.5 | 19.0 | 22.0 | Rd44x1/6" | 113040201 | 113040203 | |
| DN25 | 22.5 | 25.0 | 28.0 | Rd52x1/6" | 113040251 | 113040253 | |
| DN32 | 22.5 | 31.0 | 34.0 | Rd58x1/6" | 113040321 | 113040323 | |
| DN40 | 22.5 | 37.0 | 40.0 | Rd65x1/6" | 113040401 | 113040403 | |
| DN50 | 23.5 | 49.0 | 52.0 | Rd78x1/6" | 113040501 | 113040503 | |
| DN65 | 25.5 | 66.0 | 70.0 | Rd95x1/6" | 113040651 | 113040653 | |
| DN80 | 25.5 | 81.0 | 85.0 | Rd110x1/4" | 113040801 | 113040803 | |
| DN100 | 30.5 | 100.0 | 104.0 | Rd130x1/4" | 113041001 | 113041003 | |
| DN125 | 35.5 | 125.0 | 129.0 | Rd160x1/4" | 113041251 | 113041253 | |
| DN150 | 40.0 | 150.0 | 154.0 | Rd190x1/4" | 113041501 | 113041503 |
| Artikel | Omschrijving | DN | A | B | C | D | E | Bestel | |
| 113040103 | Lasdraadstuk SKC DN10 316 P | DN10 | 17.5 | 9.0 | 12.0 | Rd28x1/8" | |||
DN DN10 A 17.5 B 9.0 C 12.0 D E Rd28x1/8" | |||||||||
| 113040153 | Lasdraadstuk SKC DN15 316 P | DN15 | 17.5 | 15.0 | 18.0 | Rd34x1/8" | |||
DN DN15 A 17.5 B 15.0 C 18.0 D E Rd34x1/8" | |||||||||
| 113040203 | Lasdraadstuk SKC DN20 316 P | DN20 | 19.5 | 19.0 | 22.0 | Rd44x1/6" | |||
DN DN20 A 19.5 B 19.0 C 22.0 D E Rd44x1/6" | |||||||||
| 113040253 | Lasdraadstuk SKC DN25 316 P | DN25 | 22.5 | 25.0 | 28.0 | Rd52x1/6" | |||
DN DN25 A 22.5 B 25.0 C 28.0 D E Rd52x1/6" | |||||||||
| 113040323 | Lasdraadstuk SKC DN32 316 P | DN32 | 22.5 | 31.0 | 34.0 | Rd58x1/6" | |||
DN DN32 A 22.5 B 31.0 C 34.0 D E Rd58x1/6" | |||||||||
| 113040403 | Lasdraadstuk SKC DN40 316 P | DN40 | 22.5 | 37.0 | 40.0 | Rd65x1/6" | |||
DN DN40 A 22.5 B 37.0 C 40.0 D E Rd65x1/6" | |||||||||
| 113040503 | Lasdraadstuk SKC DN50 316 P | DN50 | 23.5 | 49.0 | 52.0 | Rd78x1/6" | |||
DN DN50 A 23.5 B 49.0 C 52.0 D E Rd78x1/6" | |||||||||
| 113040653 | Lasdraadstuk SKC DN65 316 P | DN65 | 25.5 | 66.0 | 70.0 | Rd95x1/6" | |||
DN DN65 A 25.5 B 66.0 C 70.0 D E Rd95x1/6" | |||||||||
| 113040803 | Lasdraadstuk SKC DN80 316 P | DN80 | 25.5 | 81.0 | 85.0 | Rd110x1/4" | |||
DN DN80 A 25.5 B 81.0 C 85.0 D E Rd110x1/4" | |||||||||
| 113041003 | Lasdraadstuk SKC DN100 316 P | DN100 | 30.5 | 100.0 | 104.0 | Rd130x1/4" | |||
DN DN100 A 30.5 B 100.0 C 104.0 D E Rd130x1/4" | |||||||||
| 113041253 | Lasdraadstuk SKC DN125 316 P | DN125 | 35.5 | 125.0 | 129.0 | Rd160x1/4" | |||
DN DN125 A 35.5 B 125.0 C 129.0 D E Rd160x1/4" | |||||||||
| 113041503 | Lasdraadstuk SKC DN150 316 P | DN150 | 40.0 | 150.0 | 154.0 | Rd190x1/4" | |||
DN DN150 A 40.0 B 150.0 C 154.0 D E Rd190x1/4" | |||||||||
