Let op: Bij bestelling van lengtemateriaal worden de transportkosten achteraf berekend.

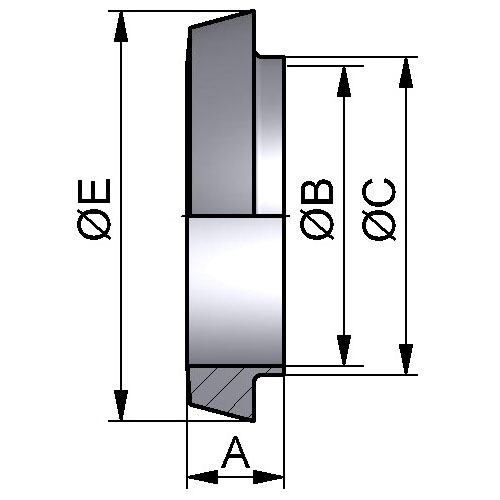

| DN | A | B | C | D | E | Artikel304 | Artikel316 |
| DN10 | 13.5 | 9.0 | 12.0 | 22.0 | 114040101 | 114040103 | |
| DN15 | 13.5 | 15.0 | 18.0 | 28.0 | 114040151 | 114040153 | |
| DN20 | 13.5 | 19.0 | 22.0 | 36.0 | 114040201 | 114040203 | |
| DN25 | 15.5 | 25.0 | 28.0 | 44.0 | 114040251 | 114040253 | |
| DN32 | 15.5 | 31.0 | 34.0 | 50.0 | 114040321 | 114040323 | |
| DN40 | 15.5 | 37.0 | 40.0 | 56.0 | 114040401 | 114040403 | |
| DN50 | 16.5 | 49.0 | 52.0 | 68.5 | 114040501 | 114040503 | |
| DN65 | 17.5 | 66.0 | 70.0 | 86.0 | 114040651 | 114040653 | |
| DN80 | 17.5 | 81.0 | 85.0 | 100.0 | 114040801 | 114040803 | |
| DN100 | 20.5 | 100.0 | 104.0 | 121.0 | 114041001 | 114041003 | |
| DN125 | 23.5 | 125.0 | 129.0 | 150.0 | 114041251 | 114041253 | |
| DN150 | 27.0 | 150.0 | 154.0 | 176.0 | 114041501 | 114041503 |
| Artikel | Omschrijving | DN | A | B | C | D | E | Bestel | |
| 114040101 | Laspuntstuk kort DN10 304 P | DN10 | 13.5 | 9.0 | 12.0 | 22.0 | |||
DN DN10 A 13.5 B 9.0 C 12.0 D E 22.0 | |||||||||
| 114040151 | Laspuntstuk kort DN15 304 P | DN15 | 13.5 | 15.0 | 18.0 | 28.0 | |||
DN DN15 A 13.5 B 15.0 C 18.0 D E 28.0 | |||||||||
| 114040201 | Laspuntstuk kort DN20 304 P | DN20 | 13.5 | 19.0 | 22.0 | 36.0 | |||
DN DN20 A 13.5 B 19.0 C 22.0 D E 36.0 | |||||||||
| 114040251 | Laspuntstuk kort DN25 304 P | DN25 | 15.5 | 25.0 | 28.0 | 44.0 | |||
DN DN25 A 15.5 B 25.0 C 28.0 D E 44.0 | |||||||||
| 114040321 | Laspuntstuk kort DN32 304 P | DN32 | 15.5 | 31.0 | 34.0 | 50.0 | |||
DN DN32 A 15.5 B 31.0 C 34.0 D E 50.0 | |||||||||
| 114040401 | Laspuntstuk kort DN40 304 P | DN40 | 15.5 | 37.0 | 40.0 | 56.0 | |||
DN DN40 A 15.5 B 37.0 C 40.0 D E 56.0 met lasaansluiting 40,0x1,5mm | |||||||||
| 114040501 | Laspuntstuk kort DN50 304 P | DN50 | 16.5 | 49.0 | 52.0 | 68.5 | |||
DN DN50 A 16.5 B 49.0 C 52.0 D E 68.5 | |||||||||
| 114040651 | Laspuntstuk kort DN65 304 P | DN65 | 17.5 | 66.0 | 70.0 | 86.0 | |||
DN DN65 A 17.5 B 66.0 C 70.0 D E 86.0 met lasaansluiting 70,0x2,0mm | |||||||||
| 114040801 | Laspuntstuk kort DN80 304 P | DN80 | 17.5 | 81.0 | 85.0 | 100.0 | |||
DN DN80 A 17.5 B 81.0 C 85.0 D E 100.0 | |||||||||
| 114041001 | Laspuntstuk kort DN100 304 P | DN100 | 20.5 | 100.0 | 104.0 | 121.0 | |||
DN DN100 A 20.5 B 100.0 C 104.0 D E 121.0 met lasaansluiting 104,0x2,0mm | |||||||||
| 114041251 | Laspuntstuk kort DN125 304 P | DN125 | 23.5 | 125.0 | 129.0 | 150.0 | |||
DN DN125 A 23.5 B 125.0 C 129.0 D E 150.0 | |||||||||
| 114041501 | Laspuntstuk kort DN150 304 P | DN150 | 27.0 | 150.0 | 154.0 | 176.0 | |||
DN DN150 A 27.0 B 150.0 C 154.0 D E 176.0 | |||||||||
